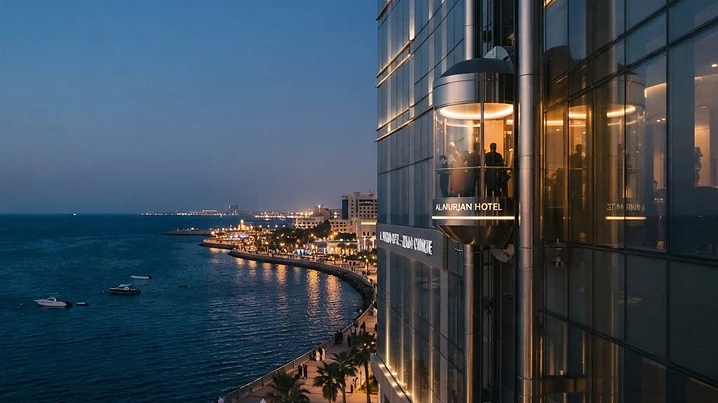

Panoramic Elevators for Jeddah Corniche Hotels
A practical guide to glass observation elevators for seafront hotels on the Jeddah Corniche, covering cabin design, EN 81-20 glazing and structural requirements for tall coastal towers, guest comfort, and salt-air maintenance planning.
A panoramic elevator gives hotel guests a moving window onto the Red Sea instead of a blank steel box. For hotels along the Jeddah Corniche, that single design choice can turn a short ride between floors into one of the stay small pleasures. This guide explains how panoramic elevators Jeddah hotels install actually work, what the glass and structure demand on a coastal tower, and how to keep them looking sharp in salt air. Jeddah waterfront is in the middle of a long tourism expansion. Saudi Arabia counted 122 million domestic and international visitors in 2025, a 5 percent increase year over year, and the national Vision 2030 goal is 150 million, according to Skift report on 2025 tourism figures. More guests on the coast means more competition between hotels, and the view is one thing a seafront property can offer that an inland one cannot.
Key takeaways
Before diving into the detail, here are the five points that matter most when planning a panoramic elevator for a Jeddah Corniche hotel:
- Panoramic elevators Jeddah hotels install turn a routine vertical trip into a Red Sea viewing experience that guests remember and rate highly.
- Observation elevator hotels on the Corniche need laminated glass, salt-resistant finishes, and extra structural allowance for wind loads on tall coastal towers.
- EN 81-20 sets measurable safety limits for elevator glass, including pendulum shock tests, so cabins stay intact under impact.
- Salt-laden sea air accelerates corrosion, so exposed panoramic lifts in Jeddah need more frequent cleaning and inspection than inland units.
- The right partner matches cabin design to the building orientation toward the water and plans maintenance access from the start.
Why Observation Elevators Elevate Jeddah's Waterfront Hotels
Observation elevator hotels use the ride itself as part of the guest experience. On the Corniche, a glass cabin rising past the lobby and up the facade keeps the Red Sea in view the whole way, so the journey feels like part of the stay rather than a pause in it. That impression matters in a market where guests compare properties on photos and reviews before they book.
- The business case is straightforward. A panoramic lift becomes a feature guests photograph and mention, which feeds the social proof that drives direct bookings. It also signals quality the moment someone steps into the lobby, before they have seen a single room. For a new or renovated hotel competing for the expanding visitor numbers above, that first impression carries weight.
- There is a practical payoff too. Glass cabins open up sightlines across a lobby or atrium, making the space feel larger and brighter. Natural light reaches further, and the elevator stops being a closed-off service element and becomes architecture that people enjoy looking at.
Glass-Cabin Design Options and Red Sea Views
Panoramic cabins come in several shapes, and the right one depends on how the hotel sits against the water. A fully glazed round or semi-round cabin gives a wide sweep of view and suits a central atrium. A square cabin with one or two glass walls is simpler to build and works well when only the seaward side needs to be transparent. The goal is to frame the Red Sea, not to glaze every face for its own sake.
- Orientation drives the design. If the shaft runs up the outside of the building on the water side, a single large glass wall facing the sea can deliver the whole effect at lower cost than a fully transparent cabin. Where the elevator climbs through an internal atrium, more glazed faces help because the view changes as the cabin rises past different floors.
- Finishes and fittings set the tone. Hotels often pair the glass with brushed stainless steel, warm timber accents, or stone floors to match the lobby. Lighting inside the cabin should be gentle enough that it does not reflect off the glass at night and block the view. Choosing between cabin styles sits within the wider question of selecting the right lift for a building, weighing view, cost, and how the shaft meets the facade.
Structural and Glazing Requirements for Coastal Towers
Coastal towers put extra demands on a panoramic elevator because of wind, weight, and salt. Glass is heavy, and a tall glazed shaft on the seaward face has to carry both the cabin loads and the wind pressure that builds up along an exposed waterfront. Structural engineers account for this early, since adding a glass shaft to a design that assumed a solid core is far more expensive than planning for it from the start.
- The glass itself is governed by safety standards. Under EN 81-20, the European standard many Gulf projects follow, any glass in the lift shaft must be laminated, and the walls have to survive defined impacts. The standard specifies a rigid pendulum shock of 10 kg dropped from 0.5 m and a soft pendulum shock of 45 kg dropped from 0.7 m. Laminated glass holds together even when cracked, so a hard knock from luggage or a fall against the wall does not send shards into the cabin.
- Shaft support: the frame must carry the dead weight of large glass panels plus the moving cabin, with margin for wind load on the exposed side.
- Thermal movement: glass and steel expand under the Jeddah sun, so fixings need room to move without stressing the panels.
- Salt isolation: structural steel near the glazing should be coated or specified to resist corrosion from sea air, because rust at a fixing point weakens the whole assembly.
Safety and Comfort Features for Guests
Guests judge a panoramic elevator on how safe and smooth it feels, not on the engineering behind it. The laminated glass required by the standards above is the foundation, but the ride quality comes from the drive system, the levelling, and the small details inside the cabin. A gearless traction drive, common in modern hotel lifts, gives a quiet, steady ride that matches the calm a glass view is meant to create.
- Smooth acceleration and stopping so the sweeping view does not come with a jolt.
- Clear, quiet ventilation to keep the cabin cool without fogging the glass in humid coastal air.
- Low-reflection glass or tuned lighting so guests see the Red Sea rather than their own reflection, especially after dark.
- Accessible controls and clear signage at a reachable height, with braille and audible floor announcements.
- Emergency provisions are non-negotiable: a reliable two-way intercom, battery-backed lighting, and automatic rescue that brings the cabin to the nearest floor during a power cut. On a tall coastal tower where power can flicker in a storm, these systems protect guests and the hotel reputation at the same time.
Maintenance of Exposed Panoramic Lifts in Jeddah
Exposed panoramic lifts on the Jeddah Corniche need more care than units tucked inside an inland building, mainly because of salt. Sea air carries fine salt particles that settle on glass, metal, and moving parts. Left alone, they dull the glass, pit stainless steel, and speed up corrosion at hinges, rails, and fixings. A maintenance plan built around the coastal setting keeps the cabin looking new and running reliably.
- Glass cleaning: frequent washing with the right solution to clear salt film before it etches or clouds the panels.
- Corrosion checks: regular inspection of exposed steel, fixings, and guide rails, with touch-up coating where protection has worn thin.
- Lubrication and alignment: moving parts need lubricant suited to a humid, salty climate, and rails checked so the ride stays smooth.
- Seal inspection: gaskets and seals that keep damp air out of the mechanism should be checked and replaced before they fail.
- Access planning belongs in the original design, not the first service visit. A glazed external shaft that nobody thought about cleaning becomes a recurring headache, so the hotel and installer should agree how crews will reach every panel and component. A written routine turns ad hoc fixes into predictable upkeep.
Frequently asked questions
Common questions from Jeddah hotel developers and operators about panoramic elevators:
- What is a panoramic elevator? A panoramic elevator, also called an observation elevator, has glass walls on one or more sides so passengers can see the view as the cabin moves. Hotels use them to showcase lobbies, atriums, and waterfront scenery.
- Are panoramic elevators safe in coastal buildings? Yes, when they use laminated safety glass and meet standards such as EN 81-20. These codes require the glass to pass shock tests and stay intact under impact, which keeps passengers protected even in a tall seafront tower.
- Why do panoramic elevators need more maintenance near the sea? Salt-laden air on the Jeddah Corniche speeds up corrosion of metal parts and leaves film on glass. Exposed cabins need more frequent cleaning, lubrication, and inspection than units inside climate-controlled inland buildings.
- Can any Jeddah hotel add a panoramic elevator? Most can during design or a major renovation, but the building needs enough shaft space, structural capacity for the glass loads, and a facade orientation that frames a worthwhile view. An early feasibility review avoids costly retrofits later.
Conclusion
A panoramic elevator on the Jeddah Corniche turns a short ride into a Red Sea moment that guests remember and share, but only when the glass, structure, and maintenance are planned for a coastal tower from day one. EN 81-20 laminated glass and shock rules keep the cabin safe, salt-resistant finishes and a tight cleaning schedule keep it looking new, and an early feasibility review keeps the design and the upkeep working together. FUJI TRIENNIUM LIFT works with Jeddah hotel developers and operators on exactly this kind of project, from matching a glass cabin to a waterfront facade to setting up a service schedule that respects the salt-air climate.
